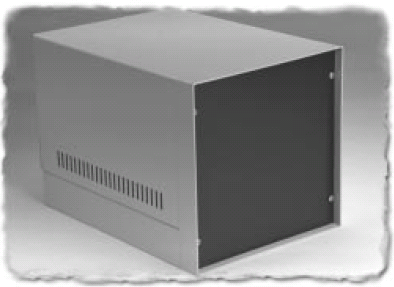

Instrument Enclosures

Key Features:

• 20 gauge steel cover and 18 gauge base and frame (for strength) finished in contempra grey.
• Easy to machine .064” thick aluminum panel painted satin black one side only.
• Philips nickel plated screws and self-adhesive rubber feet included.

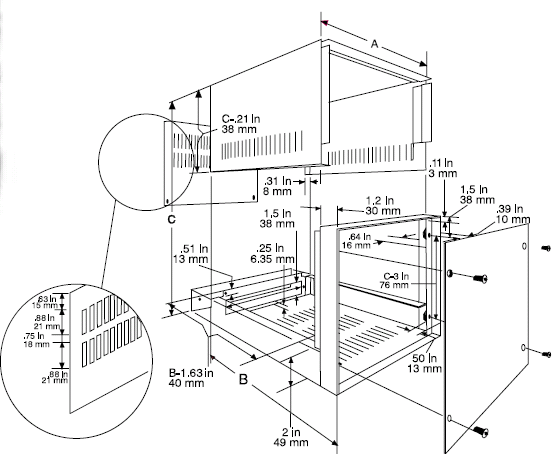

Part Number	Reader File	Drawing File Size	AutoCAD .dxf File (zipped)	.zip File Size	Units	Dimensions
						Width	Depth	Height
1452DE11 $107.60		52K		46K	inch	7.5	10.9	8.5
					mm	191	277	216
1452FF13 $130.75		52K		46K	inch	9.5	12.9	9.5
					mm	241	328	241
1452FH17 $157.67		52K		46K	inch	9.5	16.9	11.5
					mm	241	429	292
1452GC6 $105.00		52K		46K	inch	10.5	5.9	6.5
					mm	267	150	165
1452HD7 $105.73		52K		46K	inch	11.5	6.9	7.5
					mm	292	175	191
1452KE9 $124.29		52K		46K	inch	13.5	8.9	8.5
					mm	343	226	216
1452PG9 $161.38		52K		46K	inch	17.5	8.9	10.5
					mm	445	226	267
