Application |
|
- Designed for use as instrument enclosures, electric, hydraulic or
pneumatic control housings, electrical junction boxes or terminal
wiring enclosures.
- Provides a degree of protection from falling dirt, dust, oil and
water.
|
|
Standards |
- UL 508 Type 12 and 13
- CSA Type 12 and 13
- Complies with
- NEMA Type 12 and 13
- JIC EGP-1-1967 unless marked¹
- IEC 60529, IP54
|
|

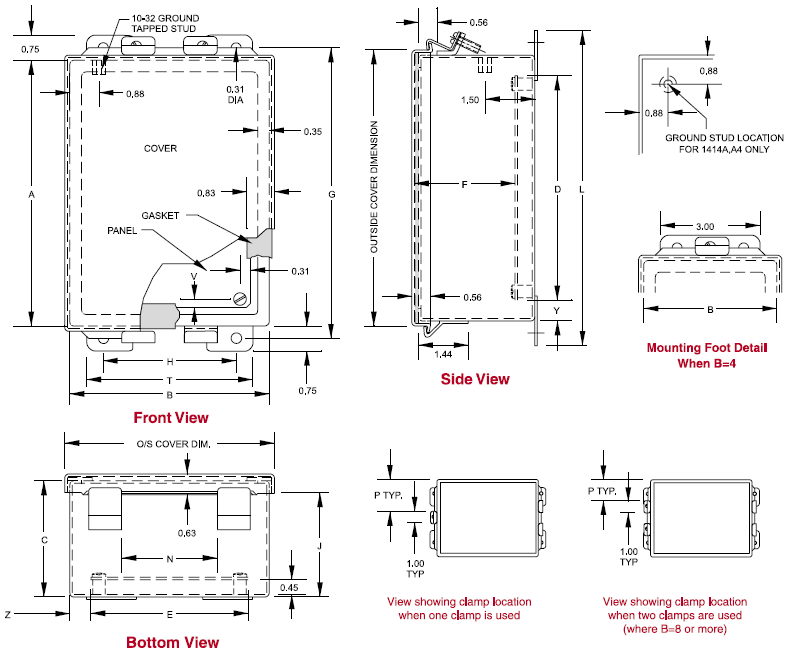

Construction |
- Body formed from 16 gauge or 14 gauge steel. Covers are formed
from 14 gauge steel.
- Smooth, continuously welded seams without knockouts, cutouts or
holes.
- Welded brackets provide for enclosure mounting.
- Lift off cover is secured with stainless steel clamps and plated
steel screws and retained with a plated chain when open.
- Oil resistant gaskets are permanently secured.
- Models larger than 4" x 4" include a removable 14 gauge inner
panel.
- Internal threaded weld studs are provided for mounting inner
panels.
- A grounding stud is provided in the enclosure.
|
|
Finish |
- Cover and enclosure are phosphatized and finished in ANSI 61 gray
recoatable powder coating.
- Removable inner panel is finished in white powder coating.
|
|
