Eclipse Series - NEMA 4, 12
Single Window Door Enclosures
Application

  • Designed to enclose electrical and/or electronic equipment in wallmount applications where viewing of component operation is necessary while maintaining protection ratings.
  • Impressive styling features like hidden hinges, attractive latching systems make the Eclipse a suitable addition to any high-tech equipment installation.
  • A wide range of sizes and practical accessories make this product line a complete package.
  • For high temperature applications, a gasket retainer may be required, please refer to factory.

Standards
  • UL 508 Type 3R, 4 and 12
  • CSA Type 3R, 4 and 12
  • Complies with
    • NEMA 3R, 4 and 12
    • IEC 60529, IP66


Construction
  • Formed 14 or 16 gauge steel.
  • Full view UV resistant polycarbonate window allow maximum viewing area of inner panel.
  • Smooth, continuously welded seams ground smooth.
  • Door stiffeners are provided where required for increased strength and rigidity - designed to also permit additional mounting options.
  • Formed lip on enclosure to exclude flowing liquids and contaminants.
  • Door latches feature the added safety of quarter turn slot requiring use of tool for opening.
  • Doors may be easily removed for modifications and are interchangeable.
  • Oil resistant gaskets are permanently secured.
  • Collar studs provided for mounting inner panel.
  • Includes hardware kit with panel mounting nuts and sealing washers for wall mounting holes.
  • Bonding stud provided on door and grounding stud installed in enclosure.
  • Hinges are constructed from 304 stainless steel.
  • Hinge pins are stainless steel.
  • Quarter turn latches are zinc diecast with black epoxy finish.

Finish
  • Cover and enclosure are phosphatized and finished with a recoatable powder inside and out with choice of ANSI 61 smooth Gray (GY) or RAL7035 textured light gray (LG).
  • RAL7032 textured beige (CG) versions with gland plates are available as non-stock items.
Back to Top

Part No.
(ANSI 61 Gray)		 Part No. (RAL7035
Light Gray)		 Overall Dimensions Door/
Body Gauge		 Latch¹ qty Hinge qty   Viewing Area Optional Panel Part No. Inner Panel Dimensions Ship Wt. lbs

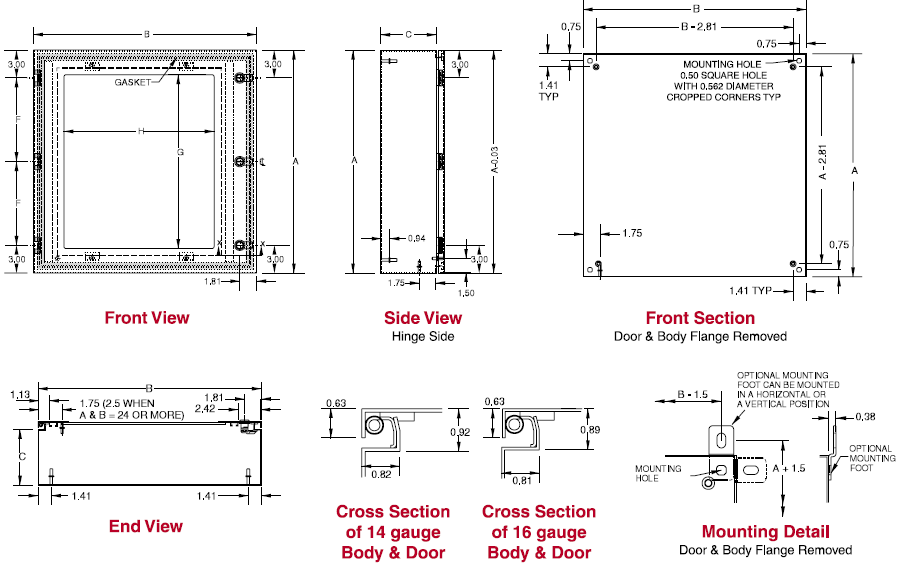

A B C F G H D E
EN4SD16126WGY
$293.58

 EN4SD16126WLG
$293.58

 16 12 6 16 1 2 10 11.33 6.71 EP1612
$12.14

 14.2 10.2 16
EN4SD20166WGY
$338.95

 EN4SD20166WLG
$338.95

 20 16 6 16 1 2 14 15.33 10.71 EP2016
$36.12

 18.2 14.2 22
EN4SD20206WGY
$365.78

 EN4SD20206WLG
$365.78

 20 20 6 16 1 2 14 15.33 14.71 EP2020
$43.36

 18.2 18.2 26
EN4SD24206WGY
$392.48

 EN4SD24206WLG
$392.48

 24 20 6 16 1 2 18 19.33 14.71 EP2420
$55.36

 22.2 18.2 30
EN4SD24246WGY
$423.49

 EN4SD24246WLG
$423.49

 24 24 6 14 2 2 18 19.33 16.15 EP2424
$64.29

 22.2 22.2 37
EN4SD16128WGY
$308.18

 EN4SD16128WLG
$308.18

 16 12 8 16 1 2 10 11.33 6.71 EP1612
$12.14

 14.2 10.2 16
EN4SD20168WGY
$357.45

 EN4SD20168WLG
$357.45

 20 16 8 16 1 2 14 15.33 10.71 EP2016
$36.12

 18.2 14.2 25
EN4SD20208WGY
$386.30

 EN4SD20208WLG
$386.30

 20 20 8 16 1 2 14 15.33 14.71 EP2020
$43.36

 18.2 18.2 28
EN4SD24208WGY
$414.99

 EN4SD24208WLG
$414.99

 24 20 8 16 1 2 18 19.33 14.71 EP2020
$43.36

 22.2 18.2 32
EN4SD24248WGY
$448.32

 EN4SD24248WLG
$448.32

 24 24 8 14 2 2 18 19.33 16.15 EP2424
$64.29

 22.2 22.2 40
EN4SD30248WGY
$497.29

 EN4SD30248WLG
$497.29

 30 24 8 14 2 3 12 25.33 16.15 EP3024
$77.59

 28.2 22.2 46
EN4SD202012WGY
$427.49

 EN4SD202012WLG
$427.49

 20 20 12 16 1 2 18 15.33 14.71 EP2020
$43.36

 18.2 18.2 34
EN4SD242012WGY
$460.36

 EN4SD242012WLG
$460.36

 24 20 12 16 1 2 18 19.33 14.71 EP2020
$43.36

 22.2 18.2 38
EN4SD242412WGY
$497.29

 EN4SD242412WLG
$497.29

 24 24 12 14 2 2 18 19.33 16.15 EP2424
$64.29

 22.2 22.2 47
EN4SD302412WGY
$553.27

 EN4SD302412WLG
$553.27

 30 24 12 14 2 3 12 25.33 16.15 EP3024
$77.59

 28.2 22.2 57
EN4SD242416WGY
$546.80

 EN4SD242416WLG
$546.80

 24 24 16 14 2 2 18 19.33 16.15 EP2424
$64.29

 22.2 22.2 66
EN4SD242420WGY
$596.25

 EN4SD242420WLG
$596.25

 24 24 20 14 2 2 18 19.33 16.15 EP2424
$64.29

 22.2 22.2 70
EN4SD302420WGY
$664.50

 EN4SD302420WLG
$664.50

 30 24 20 14 2 3 12 25.33 16.15 EP3024
$77.59

 28.2 22.2 82

¹ All Window Door latch types are quarter turns.
