Hammond Instrument Potential Transformers - (EX, HX & VT Series)

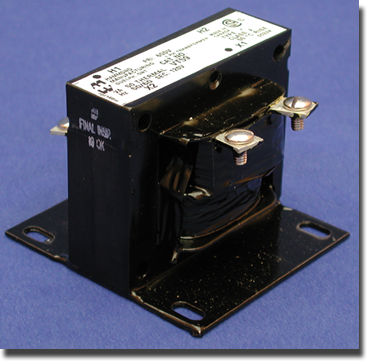

VT59

INSTRUMENT
POTENTIAL TRANSFORMERS

Key Features:

Used (with 150 Volt full scale A.C. voltmeters) to measure the voltage of 240, 480 or 600 VAC systems.
Primary insulated for 4.0 KV rms test, suitable for L.V. switchgear and motor control use.
50/60 Hz. operation.
Open construction - "Type H".
CSA certified LR3902 or LR38216.
The nominal line voltges of 240 and 480 volts may be exceeded by 25% for 60 Hz. operation.
Insulation system 55 degree C rise, Class 105.

Cat. Number	Nominal Line Voltage	Ratio Pri. / Sec.	Accuracy %	VA	Thermal Rating	Overall Dimensions			Mounting Centers		Mtg. Slot		Ship Wt. Lb.	Price	PayPal
Cat. Number	Nominal Line Voltage	Ratio Pri. / Sec.	Accuracy %	VA	Thermal Rating	A	B	C	D	E	G	H	Ship Wt. Lb.	Price	PayPal
VT55A	240	240:120	1.2	0-8	50	3.00	3.25	2.56	2.50	2.50	.22	.44	3.0	$75.50
HX54A	240	240:120	1.2	0-20	100	3.75	4.00	3.13	3.13	3.13	.22	.44	6.6	$101.63
VT56A	347	347:120	1.2	0-8	50	3.00	3.25	2.56	2.50	2.50	.22	.44	3.0	$75.50
VT57A	480	480:120	1.2	0-8	50	3.00	3.25	2.56	2.50	2.50	.22	.44	3.0	$75.50
HX74A	480	480:120	1.2	0-20	100	3.75	4.00	3.13	3.13	3.13	.22	.44	6.6	$101.63
VT59A	600	600:120	1.2	0-8	50	3.00	3.25	2.56	2.50	2.50	.22	.44	3.0	$75.50
HX94A	600	600:120	1.2	0-20	100	3.75	4.00	3.13	3.13	3.13	.22	.44	6.6	$119.74

Mechanical Data:
