Wiring Accessories


Computer Accessories

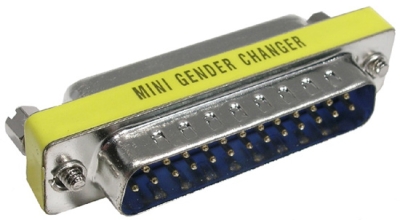

(RS232 Gender Changers)


Low profile gender changer with
appropriate mounting hardware.

Positions Male to Male Male to Female Female to Female
9-pos. 32-021-0
$ 2.44
32-022-0
$ 2.44
32-023-0
$ 2.56
15-pos. 32-024-0
$ 2.68
32-025-0
$ 2.68
32-026-0
$ 2.68
25-pos. 32-027-0
$ 2.80
32-028-0
$ 2.80
32-029-0
$ 2.92

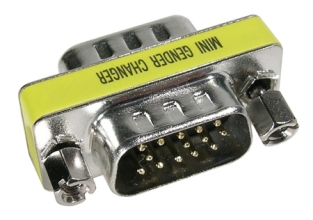

VGA   High Density

Male to Male
15-pos.

32-021HD-0

$ 3.80

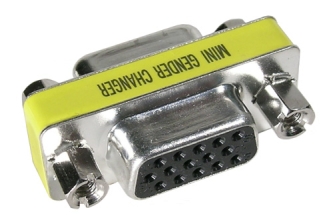

Female to Female
15-pos.

32-023HD-0

$ 3.80



Modular Phone Jack to RS232 Adapters


Note: RJ45(8C) types will accept
 RJ12(6C) plugs.
RJ12 = 6P/6C
RJ45 = 8P/8C

$ 4.20 /each

Positions Male Female
RJ12(6C)-25 pos 32-225-0
32-226-0
RJ45(8C)-9 pos 32-321-0
32-322-0
RJ45(8C)-15 pos 32-323-0
32-324-0
RJ45(8C)-25 pos 32-325-0
32-326-0


Flexible Grommet

for 10 meter
Part Number chassis thickness Price Paypal
34-511-10M 1/32" $ 12.47
34-512-10M 1/16"
34-514-10M 3/32" $ 13.80
34-515-10M 1/8" $ 14.69

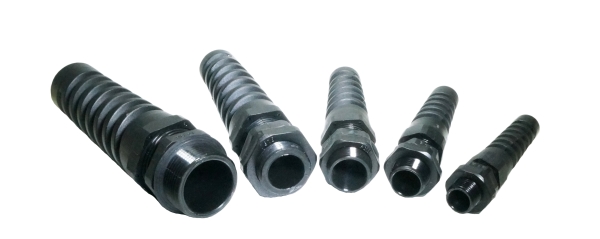

Strain Reliefs
(mm)

Part Number a
 (I.D.)
b
(Thread O.D.)
c (L) Cable Range Thread Length Price Paypal
SR-1 8.7 12.5 72 3~6.5 15 $ 2.00
SR-2 11 15.2 85 4~8 15 $ 2.50
SR-3 14 18.6 96 5~10 15 $ 2.75
SR-4 15 22.5 117 10~14 15 $ 2.90
SR-5 22 28.3 127 13~18 15 $ 3.10

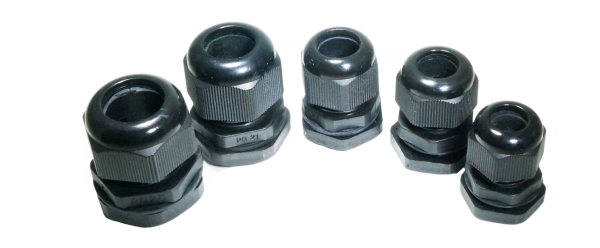

Cable Gland
(mm)


Part Number

a
 (I.D.)
b
(Thread O.D.)
c (L) Cable Range Thread Length Price Paypal
CG-1 12.35 20.4 38.10 6-11 10 $ 2.00
CG-2 14.3 22.05 40 10-13 10 $ 2.50
CG-3 15.7 24 40.4 12-15 10 $ 2.75
CG-4 18.4 28.7 46 13-18 12 $ 2.90
CG-5 21.7 30.7 45 16-21 12 $ 3.10

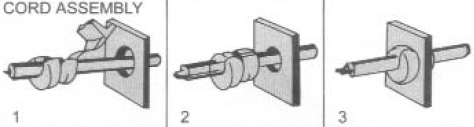

Strain Relief Bushings



94V-2 black nylon strain relief bushings

Part
Number
Section
Shape
Wire Accommodate A
(mm)
B
(mm)
D
(mm)
Chassis
Thickness
F (mm)
Price Paypal
U.L.Wire Size (mm)
DK4777A Flat SPT-1#18 2.3x4.5
2.8x5.3
9.5 8.7 10.3 0.5~1.6 $ 0.20
DK4777B SPT-1#18 2.3x4.5
2.8x5.3
9.5 8.7 10.3 1.8~3.2
DK4777C SPT-1#18 3.0x5.6 11.0 9.9 10.3 1.0~1.6
DK4777D SPT-1#18 3.0x5.6 11.0 9.9 10.3 1.9~2.5 $ 0.25
 DK4777E SPT-2#18 3.0x7.1
3.8x7.6
12.7 11.8 10.3 0.5~1.6
DK4777F SPT-2#18 3.0x7.1
3.8x7.6
12.7 11.8 10.3 1.8~2.5



Strain Relief Installation Tool


Tool for installing plastic strain relidfs


34-901-1
$ 70.95





Snap- in bushings



Part Number Size Price Paypal
DK4779E-0 for 3/8" hole $ 0.20
DK4779E-25 Pkg (25) $ 3.00
DK4779G-0 for 1/2" hole $ 0.20
DK4779G-25 Pkg (25) $ 3.00
DK4779H-0 for 5/8" hole $ 0.20
DK4779H-25 Pkg (25) $ 3.00
DK4779I-0 for 3/4" hole $ 0.25
DK4779I-25 Pkg (25) $ 4.50
DK4779M-0 for 1" hole $ 0.25
DK4779M-25 Pkg (25) $ 4.50





Hole Plugs


Part Number Size Price Paypal
DK4782B-0 for 3/8" hole $ 0.20
DK4782B-25 Pkg (25) $ 3.00
DK4782C-0 for 1/2" hole $ 0.20
DK4782C-25 Pkg (25) $ 3.00
DK4782D-0 for 5/8" hole $ 0.20
DK4782D-25 Pkg (25) $ 3.00
DK4782E-0 for 3/4" hole $ 0.25
DK4782E-25 Pkg (25) $ 4.50
DK4782F-0 for 7/8" hole $ 0.25
DK4782F-25 Pkg (25) $ 4.50
DK4782G-0 for 1" hole $ 0.25
DK4782G-25 Pkg (25) $ 4.50



Spiral Wrap


Natural color polyethylene spiral wrap.   10 Meter rolls

Part Number Size ( Dia) Price Paypal
34-410-10M 1/8" - 1/2" $ 6.99
34-420-10M 1/4" - 2" $ 9.54
34-440-10M 3/8" - 3" $ 15.99
34-450-10M 1/2" - 4" $ 17.50



Flexible Conduit



Black polypropylene flexible conduit
Split for easy wire insertion

Part Number Size Price Paypal
34-521-10M 1/4" 10 meters $ 12.00
34-521-30M 1/4" 30 meters $ 24.00
34-521-300M 1/4" 300 meters $ 180.00
34-522-10M 3/8" 10 meters $ 12.00
34-522-30M 3/8" 30 meters $ 30.00
34-522-200M 3/8" 200 meters $ 156.00
34-523-10M 1/2" 10 meters $ 12.00
34-523-30M 1/2" 30 meters $ 36.00
34-523-200M 1/2" 200 meters $ 192.00
34-524-10M 3/4" 10 meters $ 14.40
34-524-30M 3/4"  30 meters $ 38.40
34-524-100M 3/4" 100 meters $ 114.00
34-525-10M 7/8" 10 meters $ 16.80
34-525-30M 7/8" 30 meters $ 48.00
34-525-100M 7/8" 100 meters $ 138.00
34-526-10M 1" 10 meters $ 18.00
34-526-50M 1" 50 meters $ 78.00

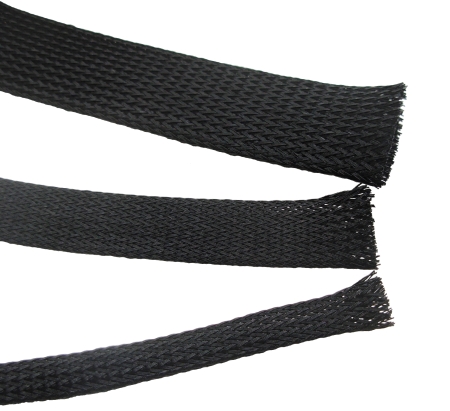

FLEX-O-WRAP

Keep all those messy cables gathered neatly together


Size Price Paypal
3/8"-1 Ft $1.00
3/8"-10 Ft $9.00
3/4"-1 Ft $1.50
3/4"-10 Ft $13.90
1 1/2"-1 Ft $2.50
1 1/2"-10 Ft $22.50





Cable Tie Tool


Handy cable tie tensioner and cut-off tool.
Made of very durable polymer material.

34-900-0
$ 18.15





Cable Tie Mounts (Screw Type)


34-200

34-201



Part Number Size Price Paypal
34-200-25 Pkg (25) #6 Screw mounting hole $ 2.50
34-200-100 Pkg (100) $ 7.40
34-201-25 Pkg (25)  .188" mounting hole $ 2.90
34-201-100  Pkg (100) $ 9.90

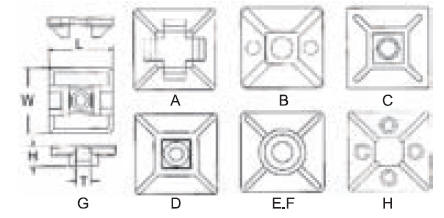

Adhesive Cable Tie Mounts


-1 pkg (1) -25 pkg (25) *  -100 pkg (100)

Part Number L (mm) W (mm) H (mm) T (mm) Price Paypal
DK4768A-1 12.5 12.5 3.2 3.2 $ 0.20
DK4768A-25 $ 4.50
DK4768A-100  $ 15.00
DK4768B-1 19 19 3.9 4.5 $ 0.20
DK4768B-25 $ 5.00
DK4768B-100  $16.50
DK4768C-1 28 28 5.3 5.0 $ 0.25
DK4768C-25 $ 5.90
DK4768C-100  $ 21.00
DK4768D-1 25.8 25.8 6.1 8.0 $ 0.20
DK4768D-25 $ 4.50
DK4768D-100  $ 18.50
DK4768E-1 18 18 4.5 4.5 $ 0.20
DK4768E-25 $ 5.00
DK4768E-100  $ 16.50
DK4768F-1  26.3 26.3 5.9 5.6 $ 0.25
DK4768F-25  $ 5.50
DK4768F-100  $ 19.00
DK4768G-1 26.3 26.3 7.3 6.2 $ 0.25
DK4768G-25  $ 5.50
DK4768G-100 $ 19.00
DK4768H-1 38 38 7.5 10 $ 0.35
DK4768H-25  $ 6.90
DK4768H-100  $ 25.00



Nylon Cable Clamps

-1 pkg (1) -25 pkg (25) *  -100 pkg (100)
Part Number Diameter Price Paypal
DK4766A-1 3.2mm
1/8"
$ 0.10
DK4766A-25 $ 2.00
DK4766A-100 $ 4.50
DK4766B-1 4.8mm
3/16"
$ 0.10
DK4766B-25 $ 2.00
DK4766B-100 $ 4.50
DK4766C-1 6.35mm
1/4"
$ 0.10
DK4766C-25 $ 2.00
DK4766C-100 $ 4.50
DK4766D-1 7.9mm
5/16"
$ 0.10
DK4766D-25 $ 2.00
DK4766D-100 $ 4.50
DK4766E-1 9.5mm
3/8"
$ 0.12
DK4766E-25 $ 2.40
DK4766E-100 $ 5.50
DK4766F-1 12.7mm
1/2"
$ 0.14
DK4766F-25 $ 2.80
DK4766F-100 $ 6.50
DK4766G-1 15.8mm
5/8"
$ 0.15
DK4766G-25 $ 3.00
DK4766G-100 $ 7.50
DK4766H-1 19.4mm
3/4"
$ 0.15
DK4766H-25 $ 3.00
DK4766H-100 $ 7.50
