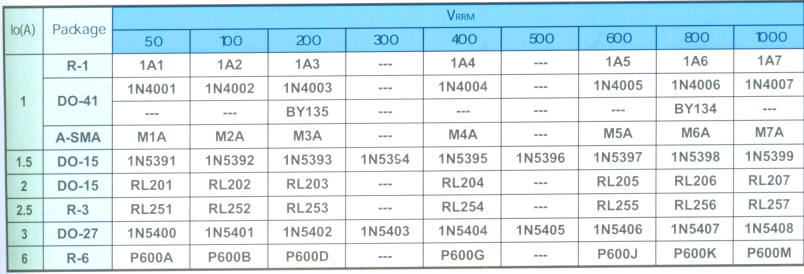

SILICON GENERAL RECTIFIERS

OUTLINE DRAWINGS (MEASUREMENTS)


1.0 AMPERE/DO-41
Type

Maximum Peak Reverse Voltage

 Maximum Forward Peak Surge Current @ 8.3mS Superimposed Maximum Reverse Current @ PVR @25°C TA Maximum Forward Voltage @ 25°C TA Price Paypal
PRV IFM (Surge) IR IFM VFM
VPK APK μAdc APK VPK
1N4001 50 30 5.0 1.0 1.0 0.12¢

1N4002 100 30 5.0 1.0 1.0 0.13¢

1N4003 200 30 5.0 1.0 1.1 0.14¢

1N4004 400 30 5.0 1.0 1.1 0.15¢

1N4005 600 30 5.0 1.0 1.1 0.16¢

1N4006 800 30 5.0 1.0 1.1 0.17¢

1N4007 1000 30 5.0 1.0 1.1 0.18¢

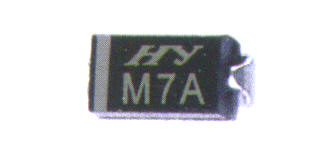

1.0 AMPERE/A-SMA
Type

Maximum Peak Reverse Voltage

 Maximum Forward Peak Surge Current @ 8.3mS Superimposed Maximum Reverse Current @ PVR @25°C TA Maximum Forward Voltage @ 25°C TA Price Paypal
PRV IFM (Surge) IR IFM VFM
VPK APK μAdc APK VPK
M1A 50 30 5.0 1.0 1.1 0.80¢

M2A 100 30 5.0 1.0 1.1 0.83¢

M3A 200 30 5.0 1.0 1.1 0.86¢

M4A 400 30 5.0 1.0 1.1 0.89¢

M5A 600 30 5.0 1.0 1.1 0.92¢

M6A 800 30 5.0 1.0 1.1 0.95¢

M7A 1000 30 5.0 1.0 1.1 0.98¢

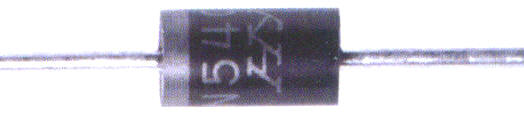

3.0 AMPERE/DO-27
Type

Maximum Peak Reverse Voltage

 Maximum Forward Peak Surge Current @ 8.3mS Superimposed Maximum Reverse Current @ PVR @25°C TA Maximum Forward Voltage @ 25°C TA Price Paypal
PRV IFM (Surge) IR IFM VFM
VPK APK μAdc APK VPK
1N5400 50 50 5.0 3.0 1.2 0.25¢

1N5401 100 50 5.0 3.0 1.2 0.26¢

1N5402 200 50 5.0 3.0 1.2 0.28¢

1N5403 300 50 5.0 3.0 1.2 0.30¢

1N5404 400 50 5.0 3.0 1.2 0.32¢

1N5405 500 50 5.0 3.0 1.2 0.34¢

1N5406 600 50 5.0 3.0 1.2 0.36¢

1N5407 800 50 5.0 3.0 1.2 0.38¢

1N5408 1000 50 5.0 3.0 1.2 0.40¢

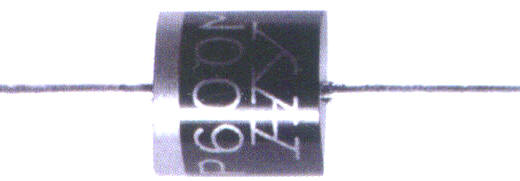

6.0 AMPERE/R-6
Type

Maximum Peak Reverse Voltage

 Maximum Forward Peak Surge Current @ 8.3mS Superimposed Maximum Reverse Current @ PVR @25°C TA Maximum Forward Voltage @ 25°C TA Price Paypal
PRV IFM (Surge) IR IFM VFM
VPK APK μAdc APK VPK
P600A 50 400 10 6.0 0.95 $1.00

P600B 100 400 10 6.0 0.95 $1.08

P600D 200 400 10 6.0 0.95 $1.16

P600G 400 400 10 6.0 0.95 $1.24

P600J 600 400 10 6.0 0.95 $1.32

P600K 800 400 10 6.0 0.95 $1.40

P600M 1000 400 10 6.0 0.95 $1.48
