Sloped Aluminum Consoles

Sloped Aluminum Consoles (1456 Series)

click to enlarge

Key Features (Aluminum Top & Bottom) - left & center above photo:

• Aluminum cases 0.081” (2 mm) thick aluminum.
• Aluminum top panel sizes to 14” wide are 0.064” thick aluminum. Larger sizes are 0.081” thick.
• Sold pre-assembled with a textured blue case and a choice of an contempra grey (beige) or a black top panel.
• Comes with self adhesive rubber feet and required mounting hardware.

Key Features (Aluminum Top & Walnut Case) - right above photo:

• Solid oiled walnut sides on a black, ventilated steel base with contempra grey (beige) aluminum top panel.
• Aluminum top panel sizes to 14” wide are 0.064” thick aluminum. Larger sizes are 0.081” thick.
• Comes with self adhesive rubber feet and required mounting hardware.


No Slope	10 Degree Slope	15 Degree Slope	30 Degree Slope

No Slope

Part Number			Reader File	Drawing File Size	AutoCAD .dxf File (zipped)	.zip File Size	Units	Dimensions
Beige Top and Blue Case	Black Top and Blue Case	Beige Top and Walnut Case
								Width	Depth	Rear Height	Front Height
1456NEK4WHBU $42.51	1456NEK4BKBU $42.51			36K		15K	inch	6.0	10.0	4.0	4.0
							mm	152	254	102	102

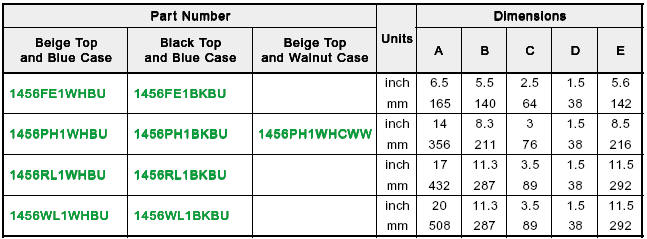

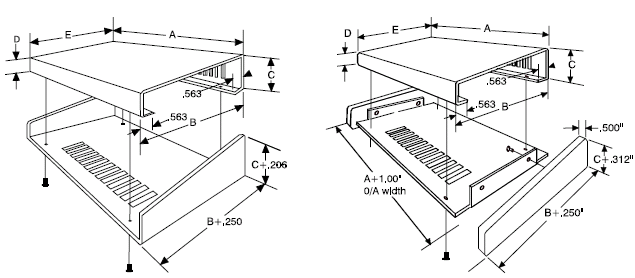

10 Degree Slope

Part Number			Reader File	Drawing File Size	AutoCAD .dxf File (zipped)	.zip File Size	Units	Dimensions
Beige Top and Blue Case	Black Top and Blue Case	Beige Top and Walnut Case
								Width	Depth	Rear Height	Front Height
1456FE1WHBU $32.63	1456FE1BKBU $32.63			39K		13K	inch	6.5	5.5	2.5	1.5
							mm	165	140	64	38
1456PH1WHBU $47.79	1456PH1BKBU $47.79	1456PH1WHCWW $106.41		41K		15K	inch	14	8.3	3	1.5
							mm	356	211	76	38
1456RL1WHBU $56.99	1456RL1BKBU $56.99			42K		15K	inch	17	11.3	3.5	1.5
							mm	432	287	89	38
1456WL1WHBU $67.33	1456WL1BKBU $67.33			42K		15K	inch	20	11.3	3.5	1.5
							mm	508	287	89	38

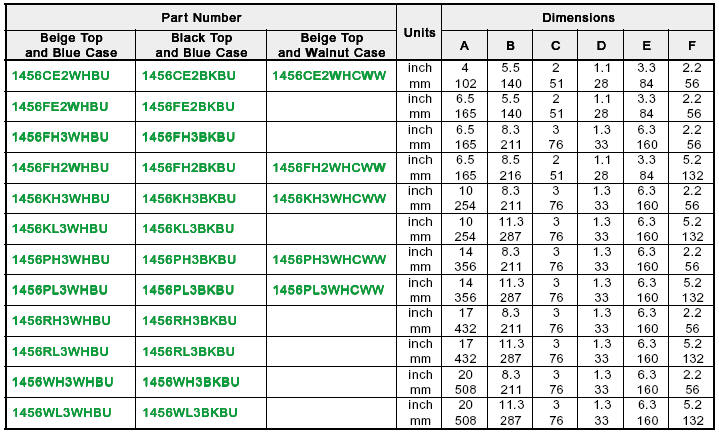

15 Degree Slope

Part Number			Reader File	Drawing File Size	AutoCAD .dxf File (zipped)	.zip File Size	Units	Dimensions
Beige Top and Blue Case	Black Top and Blue Case	Beige Top and Walnut Case
								Width	Depth	Rear Height	Front Height
1456CE2WHBU $29.11	1456CE2BKBU $29.11	1456CE2WHCWW $82.82		39K		13K	inch	4	5.5	2	1.1
							mm	102	140	51	28
1456FE2WHBU $32.63	1456FE2BKBU $32.63			34K		14K	inch	6.5	5.5	2	1.1
							mm	165	140	51	28
1456FH3WHBU $39.65	1456FH3BKBU $39.65			40K		14K	inch	6.5	8.3	3	1.3
							mm	165	211	76	33
1456FH2WHBU $35.59	1456FH2BKBU $35.59	1456FH2WHCWW $89.56		40K		14K	inch	6.5	8.5	2	1.1
							mm	165	216	51	28
1456KH3WHBU $42.51	1456KH3BKBU $42.51	1456KH3WHCWW $97.80		41K		15K	inch	10	8.3	3	1.3
							mm	254	211	76	33
1456KL3WHBU $46.61	1456KL3BKBU $46.61			41K		15K	inch	10	11.3	3	1.3
							mm	254	287	76	33
1456PH3WHBU $47.79	1456PH3BKBU $47.79	1456PH3WHCWW $106.42		42K		15K	inch	14	8.3	3	1.3
							mm	356	211	76	33
1456PL3WHBU $51.35	1456PL3BKBU $51.35	1456PL3WHCWW $111.23		42K		15K	inch	14	11.3	3	1.3
							mm	356	287	76	33
1456RH3WHBU $56.99	1456RH3BKBU $56.99			42K		15K	inch	17	8.3	3	1.3
							mm	432	211	76	33
1456RL3WHBU $59.49	1456RL3BKBU $59.49			42K		15K	inch	17	11.3	3	1.3
							mm	432	287	76	33
1456WH3WHBU $64.79	1456WH3BKBU $64.79			42K		15K	inch	20	8.3	3	1.3
							mm	508	211	76	33
1456WL3WHBU $67.33	1456WL3BKBU $67.33			41K		15K	inch	20	11.3	3	1.3
							mm	508	287	76	33

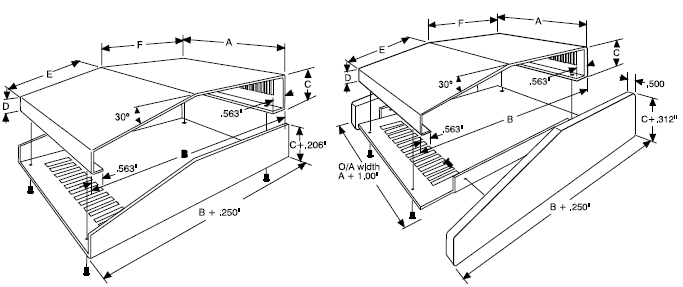

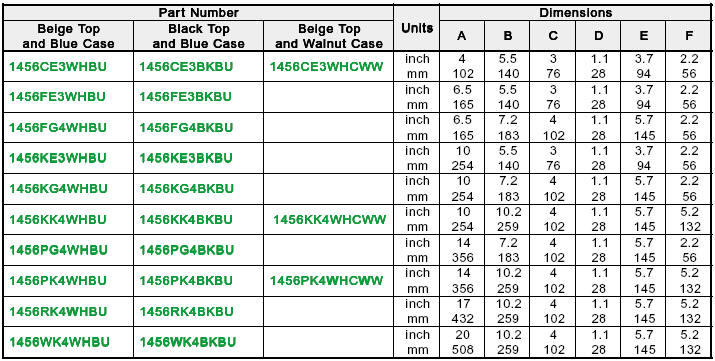

30 Degree Slope

Part Number			Reader File	Drawing File Size	AutoCAD .dxf File (zipped)	.zip File Size	Units	Dimensions
Beige Top and Blue Case	Black Top and Blue Case	Beige Top and Walnut Case
								Width	Depth	Rear Height	Front Height
1456CE3WHBU $29.11	1456CE3BKBU $29.11	1456CE3WHCWW $82.82		39K		13K	inch	4	5.5	3	1.1
							mm	102	140	76	28
1456FE3WHBU $32.63	1456FE3BKBU $32.63			40K		14K	inch	6.5	5.5	3	1.1
							mm	165	140	76	28
1456FG4WHBU $35.59	1456FG4BKBU $35.59			39K		14K	inch	6.5	7.2	4	1.1
							mm	165	183	102	28
1456KE3WHBU $39.65	1456KE3BKBU $39.65			41K		14K	inch	10	5.5	3	1.1
							mm	254	140	76	28
1456KG4WHBU $42.51	1456KG4BKBU $42.51			41K		15K	inch	10	7.2	4	1.1
							mm	254	183	102	28
1456KK4WHBU $46.61	1456KK4BKBU $46.61	1456KK4WHCWW $104.62		41K		15K	inch	10	10.2	4	1.1
							mm	254	259	102	28
1456PG4WHBU $47.79	1456PG4BKBU $47.79			41K		15K	inch	14	7.2	4	1.1
							mm	356	183	102	28
1456PK4WHBU $51.35	1456PK4BKBU $51.35	1456PK4WHCWW $111.23		42K		15K	inch	14	10.2	4	1.1
							mm	356	259	102	28
1456RK4WHBU $59.49	1456RK4BKBU $59.49			43K		15K	inch	17	10.2	4	1.1
							mm	432	259	102	28
1456WK4WHBU $67.33	1456WK4BKBU $67.33			44K		16K	inch	20	10.2	4	1.1
							mm	508	259	102	28
