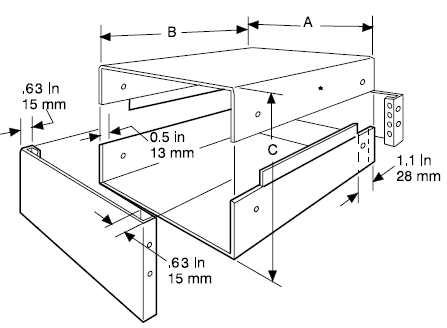

click to enlarge

Key Features:

Part Number		Reader File	Drawing File Size	AutoCAD .dxf File (zipped)	.zip File Size	Units	Dimensions
Satin Black	Satin Blue						Width	Depth	Height
1458A3 $46.98	1458A3B $46.98		35K		11K	inch	4	4	3
						mm	101	101	76.2
1458B4 $52.08	1458B4B $52.08		35K		11K	inch	6	4	4
						mm	152	101	101
1458C3 $46.98	1458C3B $46.98		35K		11K	inch	6	6	3
						mm	152	152	76.2
1458C4 $48.56	1458C4B $48.56		35K		11K	inch	6	6	4
						mm	152	152	101
1458D3 $56.81	1458D3B $56.81		35K		11K	inch	8	8	3
						mm	203	203	76.2
1458D4 $59.90	1458D4B $59.90		35K		11K	inch	8	8	4
						mm	203	203	101
1458D5 $64.60	1458D5B $64.60		35K		11K	inch	8	8	5
						mm	203	203	127
1458E3 $61.48	1458E3B $61.48		35K		11K	inch	8	10	3
						mm	203	254	76.2
1458E4 $64.99	1458E4B $64.99		35K		11K	inch	8	10	4
						mm	203	254	101
1458E5 $68.52	1458E5B $68.52		35K		11K	inch	8	10	5
						mm	203	254	127
1458G3 $64.99	1458G3B $64.99		35K		11K	inch	10	8	3
						mm	254	203	76.2
1458G4 $70.47	1458G4B $70.47		35K		11K	inch	10	8	4
						mm	254	203	101
1458G5 $66.55	1458G5B $66.55		35K		11K	inch	10	8	5
						mm	254	203	127

03-01-2025
