Plastic Hand Held Enclosures

Plastic Hand Held Enclosures (1599 "S" Series)

1599 Photo

Key Features:

Attractively styled and ergonomically designed for use as a “hand-held” instrument enclosure.
Molded from economical plastic. Link here to our flame retardant ABS plastic version.
Recessed top for membrane display or pad.
Lap joint construction provides protection against access of dust and splashing water.
Extra deep top and ultra shallow base are specifically designed to enhance the aesthetics of the enclosure and provide the user with flexibility and assembly efficiency.
Designed to meet IP54.
Two keyhole knockouts are molded into the inside of the base to facilitate wall mounting installation.
Link here to photo tables of each part number (No Battery Door) - (parts shown are the ABS plastic version) - only difference is material & lack of brass inserts & machine screws
Link here to photo tables of each part number (With Battery Door) - (parts shown are the ABS plastic version) - only difference is material & lack of brass inserts & machine screws.

Hammond Part Number	Color	Battery Door	Reader File	Drawing File Size	AutoCAD .dxf & .dwg Files (zipped)	.zip File Size	Units	Length	Width	Enclosure Depth (Includes Lid)
1599BSGY $5.51	Grey	No		112K		105K	Inches	5.12	2.56	0.97
							mm	130	65	25
1599BSGYBAT $6.51	Grey	Yes		124K		106K	Inches	5.12	2.56	0.97
							mm	130	65	25
1599ESGY $5.78	Grey	No		128K		103K	Inches	6.70	3.35	1.33
							mm	170	85	34
1599ESGYBAT $7.55	Grey	Yes		151K		104K	Inches	6.70	3.3	1.33
							mm	170	85	34
1599HSGY $6.65	Grey	No		134K		112K	Inches	8.66	4.33	1.73
							mm	220	110	44
1599HSGYBAT $11.37	Grey	Yes		131K		114K	Inches	8.66	4.33	1.73
							mm	220	110	44
1599KSGY $9.03	Grey	No		116K		97K	Inches	8.66	5.5	1.60
							mm	220	140	40.5
1599KSGYBAT $12.26	Grey	Yes		124K		100K	Inches	8.66	5.5	1.60
							mm	220	140	40.5

NOTES:

All Dimensions in inches & mm
A black nylon belt/pocket clip (Hammond Part Number 1599CLIP) or in grey nylon (Hammond Part Number 1599CLIPGY) is also available (see photo below). Download drawings in: Adobe PDF file 1599CLIP.pdf (36K) or CAD drawings (both .dxf & .dwg) 1599CLIP.zip (28K).

Economical version uses self tapping
screws. Perfect where economy is important
and where repetitive assembly and
disassembly of lid is not vital.

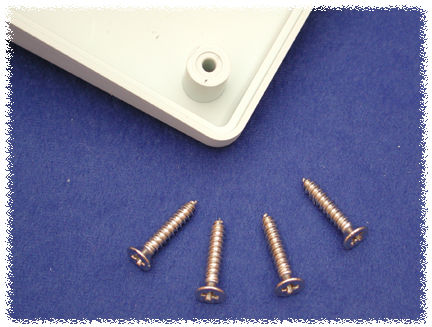

Self Tapping Lid Screws

Battery Door Information

Part numbers above ending in "BAT" include a battery door (shown below)

Battery Door Closed	Battery Door Open

Accessories

Screws:

Accessory screws for mounting P.C. boards into standoffs (#4 x 1/4" pan head)

P/N 1593ATS50 (qty. 50)
$5.67

P/N 1593ATS100 (qty. 100)
$7.15

Replacement machine screw, used in flame retardant ABS 1599B series (ie...with brass inserts). M3 - 0.5 x 20 mm

1594MS100 - Package of 100
$3.08
Replacement machine screw, used in flame retardant ABS 1599E, H & K series (ie...with brass inserts). M3 - 0.5 x 10 mm

1591MS100 - Package of 100
$3.98

Belt / Pocket Clip Option:

Click Here To Enlarge

Click Here To Enlarge

Molded from tough nylon (choice of Black or Grey).
Includes 2 nylon screws (insulated to avoid internal interference).
Mounting template included.

Black - Part Number	1599CLIP $0.88
Grey - Part Number	1599CLIPGY $0.88

Battery Holder Kits:

Designed for our battery door enclosure (ie...part numbers ending in BAT).
Kits include all the parts required to install the battery or batteries.
Kit includes the battery holder, wires, divider and foam anti-rattle pad.

Part Number	Battery Holder Kit For:	Fits Battery Door Enclosure Size:
BH1AAWKIT $1.02	1 AA Cell	1599B, 1599E, 1599H & 1599K series
BH2AAWKIT $1.05	2 AA Cells	1599B, 1599E, 1599H & 1599K series
BH1AAAWKIT $0.92	1 AAA Cell	1599B, 1599E, 1599H & 1599K series
BH2AAAWKIT $1.14	2 AAA Cells	1599B, 1599E, 1599H & 1599K series
BH3AAAWKIT $1.65	3 AAA Cells	1599E, 1599H & 1599K series
BH4AAAWKIT $1.97	4 AAA Cells	1599E, 1599H & 1599K series
BS61KIT $0.77	1 - 9V Cell	1599B, 1599E, 1599H & 1599K series

Link here for pictures & more details

Battery Dividers:

Grey ABS plastic panel barriers which insert vertically into the P.C. card guides.

Part Number (Package of 5)	Part Number (Package of 100)	Use With Enclosure Series:
1599BD5 $2.66	1599BD100 $40.77	1599B
1599ED5 $3.47	1599ED100 $56.38	1599E
1599HD5 $4.47	1599HD100 $74.90	1599H
