NTE5240A thru NTE5296A
50 Watt Zener Diodes
±5% Tolerance
Features:
-Zener Voltage 3.9 to 200V
-Low Zener Impedance
-Highly Reliable and Rugged
-Also Available in Reverse Polarity (NTE5240AK thru NTE5296AK)
Maximum Ratings:
Operating Junction Temperature Range, Topr . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −65° to +175°C
Storage Temperature Range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −65° to +175°C
DC Power Dissipation, PD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50W
Derate Above 75°C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5W/°C
Forward Voltage (IF = 10A), VF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.5V
Note 1. Suffix “A” denotes anode to case polarity, “AK” denotes cathode to case.
Electrical Characteristics: (TC = +30°C, unless otherwise specified)
|
NTE Type Number |
Nominal |
Zener Test Current (Izt) |
Maximum Dynamic Impedance (Note 3) |
Maximum DC Zener Current* (Izm) |
Typical Temperature Coefficient avz |
Maximum Leakage Current IR @ VR |
||
|
Zzt @ Izt |
Zzk @ 1mA (Izk) |
|||||||
| Volts | mA | Ohms | Ohms | mA | %/°C | µA | Volts | |
|
NTE5240A |
3.9 |
3200 |
0.16 |
400 |
11900 |
−0.046 |
150 |
0.5 |
|
NTE5241A |
4.3 |
2900 |
0.16 |
500 |
10650 |
−0.033 |
150 |
0.5 |
|
NTE5242A |
4.7 |
2650 |
0.12 |
600 |
9700 |
−0.015 |
100 |
1.0 |
|
NTE5243A |
5.1 |
2450 |
0.12 |
650 |
8900 |
±0.010 |
20 |
1.0 |
|
NTE5244A |
5.6 |
2250 |
0.12 |
900 |
8100 |
+0.030 |
29 |
1.0 |
|
NTE5245A |
6.0 |
2125 |
0.13 |
950 |
7700 |
+0.040 |
20 |
1.5 |
|
NTE5246A |
6.2 |
2000 |
0.14 |
1000 |
7300 |
+0.049 |
20 |
2.0 |
|
NTE5247A |
6.8 |
1850 |
0.20 |
70 |
6600 |
0.040 |
300 |
4.5 |
|
NTE5248A |
7.5 |
1700 |
0.30 |
70 |
5900 |
0.045 |
125 |
5.0 |
|
NTE5249A |
8.2 |
1500 |
0.40 |
70 |
5200 |
0.048 |
50 |
5.4 |
Electrical Characteristics (Cont’d): (TC = +30°C, unless otherwise specified)
|
NTE Type Number |
Nominal |
Zener Test Current (Izt) |
Maximum Dynamic Impedance (Note 3) |
Maximum DC Zener Current* (Izm) |
Typical Temperature Coefficient avz |
Maximum Leakage Current IR @ VR |
||
|
Zzt @ Izt |
Zzk @ 1mA (Izk) |
|||||||
| Volts | mA | Ohms | Ohms | mA | %/°C | µA | Volts | |
|
NTE5250A |
8.7 |
1435 |
0.45 |
70 |
5000 |
0.049 |
37 |
5.7 |
|
NTE5251A |
9.1 |
1370 |
0.50 |
70 |
4800 |
0.050 |
25 |
6.1 |
|
NTE5252A |
10.0 |
1200 |
0.60 |
80 |
4300 |
0.055 |
25 |
6.7 |
|
NTE5253A |
11.0 |
1100 |
0.80 |
80 |
3900 |
0.060 |
10 |
8.4 |
|
NTE5254A |
12.0 |
1000 |
1.00 |
80 |
3800 |
0.065 |
10 |
9.1 |
|
NTE5255A |
13.0 |
960 |
1.10 |
80 |
3300 |
0.065 |
10 |
9.9 |
|
NTE5256A |
14.0 |
890 |
1.20 |
80 |
3000 |
0.070 |
10 |
11.4 |
|
NTE5257A |
15.0 |
835 |
1.40 |
80 |
2825 |
0.070 |
10 |
11.8 |
|
NTE5258A |
16.0 |
780 |
1.60 |
80 |
2650 |
0.070 |
10 |
12.2 |
|
NTE5259A |
17.0 |
740 |
1.80 |
80 |
2500 |
0.075 |
10 |
13.0 |
|
NTE5260A |
18.0 |
700 |
2.00 |
80 |
2300 |
0.075 |
10 |
13.7 |
|
NTE5261A |
19.0 |
660 |
2.20 |
80 |
2200 |
0.075 |
10 |
13.7 |
|
NTE5262A |
20.0 |
630 |
2.40 |
80 |
2100 |
0.075 |
10 |
15.2 |
|
NTE5263A |
22.0 |
570 |
2.50 |
80 |
1900 |
0.080 |
10 |
16.7 |
|
NTE5264A |
24.0 |
520 |
2.60 |
80 |
1750 |
0.080 |
10 |
18.2 |
|
NTE5265A |
25.0 |
500 |
2.70 |
90 |
1550 |
0.080 |
10 |
18.2 |
|
NTE5266A |
27.0 |
460 |
2.80 |
90 |
1500 |
0.085 |
10 |
20.6 |
|
NTE5267A |
28.0 |
440 |
2.90 |
90 |
1450 |
0.085 |
10 |
21.7 |
|
NTE5268A |
30.0 |
420 |
3.00 |
90 |
1400 |
0.085 |
10 |
22.8 |
|
NTE5269A |
33.0 |
380 |
3.20 |
90 |
1300 |
0.085 |
10 |
25.1 |
|
NTE5270A |
36.0 |
350 |
3.50 |
90 |
1150 |
0.085 |
10 |
27.4 |
|
NTE5271A |
39.0 |
320 |
4.00 |
90 |
1050 |
0.090 |
10 |
29.7 |
|
NTE5272A |
43.0 |
290 |
4.50 |
90 |
975 |
0.090 |
10 |
32.7 |
|
NTE5273A |
45.0 |
280 |
4.50 |
100 |
930 |
0.090 |
10 |
32.7 |
|
NTE5274A |
47.0 |
270 |
5.00 |
100 |
880 |
0.090 |
10 |
35.8 |
|
NTE5275A |
50.0 |
250 |
5.00 |
100 |
830 |
0.090 |
10 |
38.8 |
|
NTE5276A |
51.0 |
245 |
5.20 |
100 |
810 |
0.090 |
10 |
38.8 |
|
NTE5277A |
52.0 |
240 |
5.50 |
100 |
790 |
0.090 |
10 |
42.6 |
|
NTE5278A |
56.0 |
220 |
6.00 |
110 |
740 |
0.090 |
10 |
42.6 |
|
NTE5279A |
60.0 |
210 |
6.50 |
115 |
700 |
0.090 |
10 |
44.8 |
|
NTE5280A |
62.0 |
200 |
7.00 |
120 |
660 |
0.090 |
10 |
47.1 |
|
NTE5281A |
68.0 |
180 |
8.00 |
140 |
600 |
0.090 |
10 |
51.7 |
Electrical Characteristics (Cont’d): (TC = +30°C, unless otherwise specified)
|
NTE5282A |
75.0 |
170 |
9.00 |
150 |
540 |
0.090 |
10 |
56.0 |
|
NTE5283A |
82.0 |
150 |
11.00 |
160 |
490 |
0.090 |
10 |
62.2 |
|
NTE5284A |
91.0 |
140 |
15.00 |
180 |
420 |
0.090 |
10 |
69.2 |
|
NTE5285A |
100.0 |
120 |
20.00 |
200 |
400 |
0.090 |
10 |
76.0 |
|
NTE5286A |
105.0 |
120 |
25.00 |
210 |
380 |
0.095 |
10 |
83.0 |
|
NTE5287A |
110.0 |
110 |
30.00 |
220 |
365 |
0.095 |
10 |
83.0 |
|
NTE5288A |
120.0 |
100 |
40.00 |
240 |
335 |
0.095 |
10 |
91.2 |
|
NTE5289A |
130.0 |
95 |
50.00 |
275 |
310 |
0.095 |
10 |
99.8 |
|
NTE5290A |
140.0 |
90 |
60.00 |
325 |
290 |
0.095 |
10 |
114.0 |
|
NTE5291A |
150.0 |
85 |
75.00 |
400 |
270 |
0.095 |
10 |
114.0 |
|
NTE5292A |
160.0 |
80 |
80.00 |
450 |
250 |
0.095 |
10 |
121.6 |
|
NTE5293A |
175.0 |
70 |
85.00 |
500 |
230 |
0.095 |
10 |
121.6 |
|
NTE5294A |
180.0 |
68 |
90.00 |
525 |
220 |
0.095 |
10 |
136.8 |
|
NTE5295A |
190.0 |
66 |
95.00 |
561 |
210 |
0.098 |
10 |
144.4 |
|
NTE5296A |
200.0 |
65 |
100.00 |
600 |
200 |
0.100 |
10 |
152.0 |

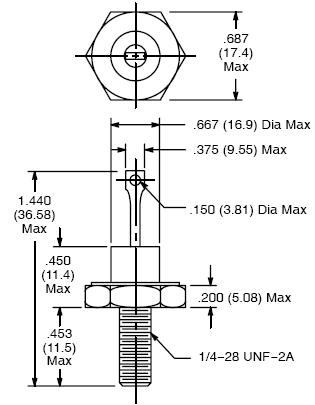

Note 2. Zener Voltage (Vz) is measured with junction in thermal equilibrium with 30°C stud temperature.
Note 3.The zener impedance is derived from the 60 cycle A.C. voltage, which results when an AC
current having an RMS value equal to 10% of the DC zener current (IZT or IZK) is superimposed
on IZT or IZK. Zener impedance is measured at 2 points to insure a sharp knee on the breakdown curve and to eliminate unstable units.
