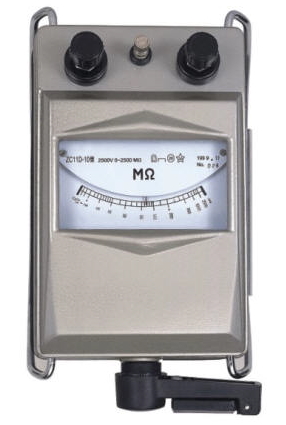

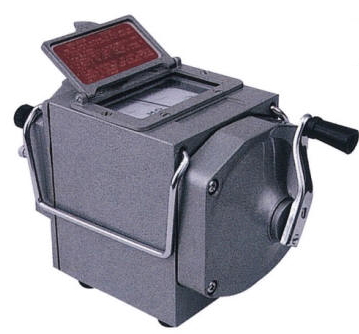

Hand - driven high voltage D.C.
generator with |
| |
speed regulator enables steady
voltage output |
| * |
Built - in magnet with cross coil
current - ratio |
| |
meter provides stable and accurate
readings |
| * |
No battery needed |
| * |
For measuring high resistance and
testing |
| |
electrical lines, windings of motor,
cables, |
| |
transformer and other electric
equipment |
| |
|
| |
Technical
Specifications |
| |
|
| |
ZC11D-4: 1000V
/ 5000MΩ, ±10% |
| |
Rated
crank speed: 150RPM |
| |
Dimensions: 215
x 135 x 130
mm |
| |
Weight:
approx 2.5 kgs |
