Buzzers

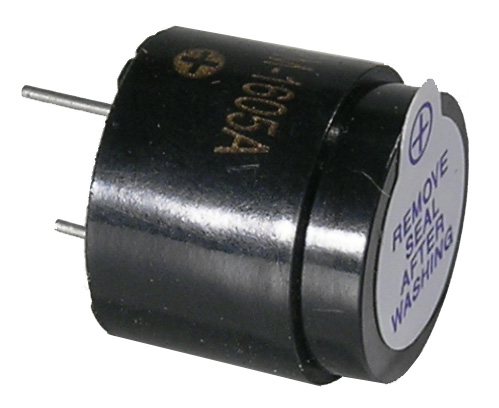

Solid State Buzzer


Solid state buzzer 100mm leads

Current:          35mA
Sound output:  85db @ 20cm
Frequency:      2KHz

Part Number Input Voltage Price Paypal
DK4268B 3VDC $2.99

DK4268D 4-8VDC $2.99

DK4268E 8-16VDC $2.99


Magnetic Buzzer

Magnetic buzzer. Complete with internal driver.

Current:          30mA
Sound output:  85db @ 10cm
Frequency:      2KHz

Part Number Input Voltage Price Paypal
61-223-0 4-8 VDC $2.79 Sold out
61-224-0 8-15 VDC $3.24


PIEZO Buzzer / Transducer ONLY

Size : Ø 13mm
                                                                         high:  3.8mm

Current:          2mA
Sound output:  75db @ 10cm
Frequency:      4KHz

Part Number   Price Paypal
4264   $1.90


Size : Ø 30mm
                                                                         high:  10mm
Part Number   Price Paypal
PB-2   $2.50


Panel Mount Buzzer

Panel mount buzzer with 100mm leads.

Current:          40mA
Sound output:  90db @ 30cm
Frequency:      2800Hz

Part Number Input Voltage Price Paypal
61-231-0 4-8 VDC $3.87

61-232-0 8-16 VDC $3.87

61-233-0 20-28 VDC $4.17


Solid State Electric Buzzer

Size : Ø 25mm
                                                                         high:  15mm

Current:          40mA
Sound output:  90db @ 20cm
Frequency:      0.4KHz

Part Number Input Voltage Price Paypal
4269B 3V 85db @ 20cm $3.50

4269C 6V 90db @ 20cm $3.50

4269D 12V 90db @ 20cm $3.50

4269E 24V 90db @ 20cm $3.50


Size : Ø 73mm
                                                                                                       high:  42mm

Current:          60mA
Sound output:  85db @ 300cm
Part Number Input Voltage Price Paypal
4284D 120V $14.00


Panel Mount Audio Alarm

Current:          15mA
Sound output:  80db @ 100cm
Frequency:      2.9KHz
6 ~ 28 VDC

Part Number Input Voltage/Sound output Price Paypal
61-301-0

Continuous Tone

 $7.41

61-302-0 Pulsed tone $6.33



Alarm Bells

4" (100mm)
12 V DC

$16.00
Weatherproof
6" (150mm)
24 V DC 95dB / 25mA

$23.50
